The flagship, large-scale arena of the F.LIGHT series (169 m²). A massive structure for professional training and community integration, which you can install on raw urban ground without the need for expensive EPDM.
Standard: EN 16899:2017-02
Catalog card

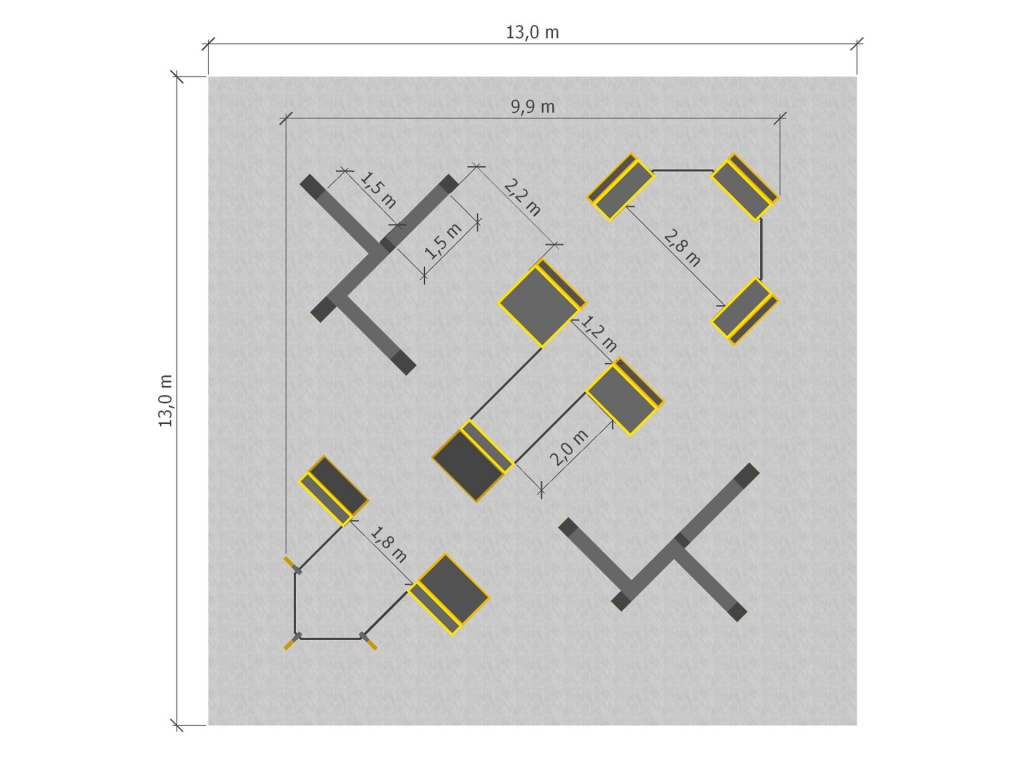

Download PDFTop view DWG
Download DWG
Safety zone
13x13m
(169 m2)
HIC max
1 m
Number of users
max
8 people
Maximum user weight
120 kg

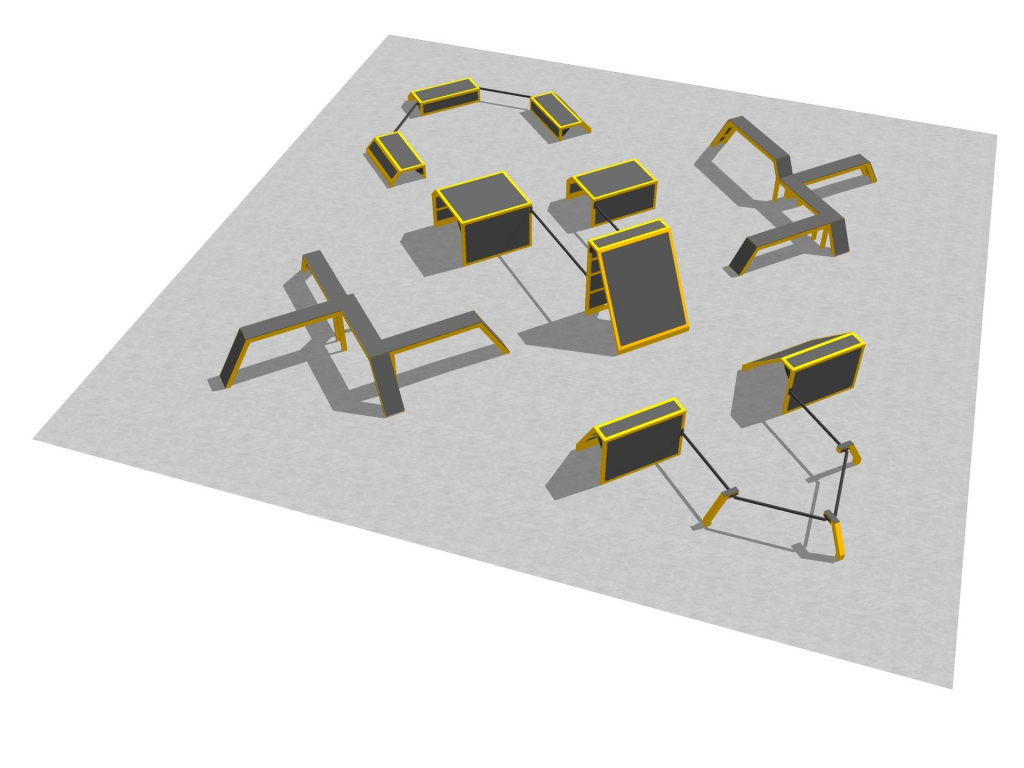

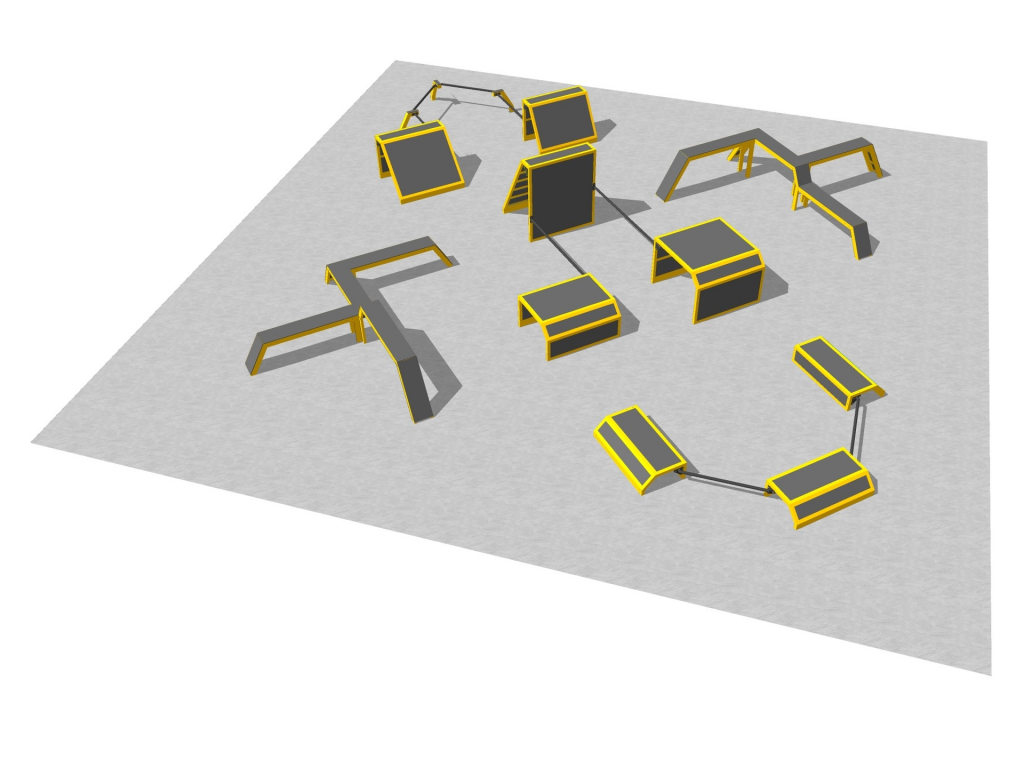

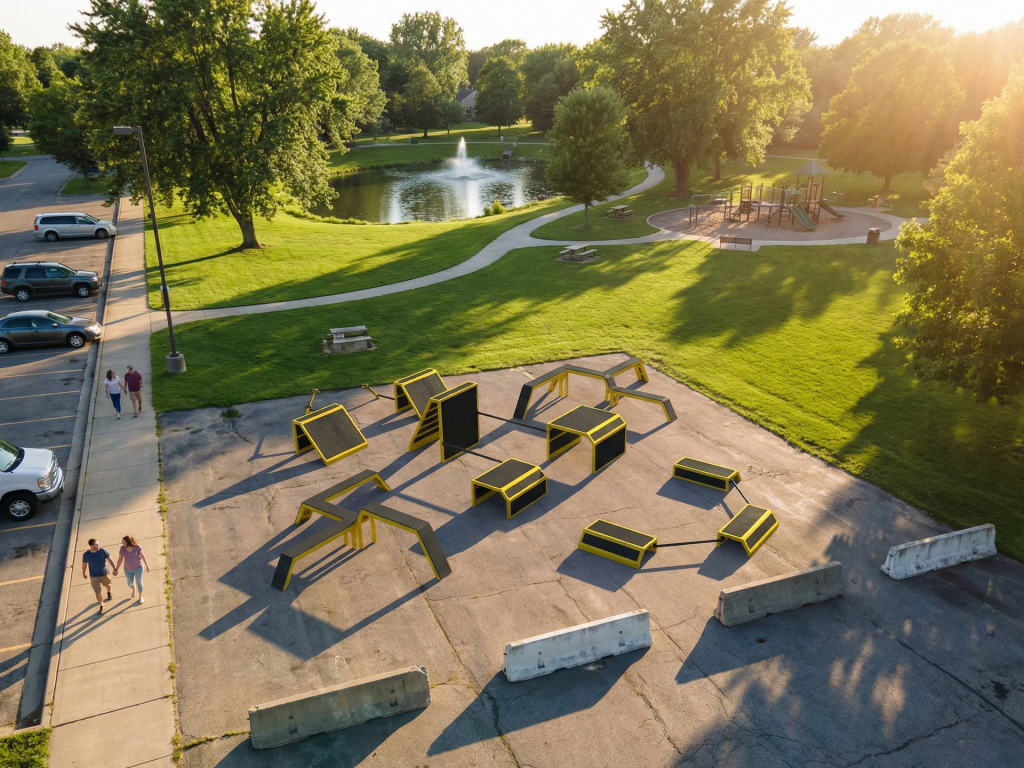

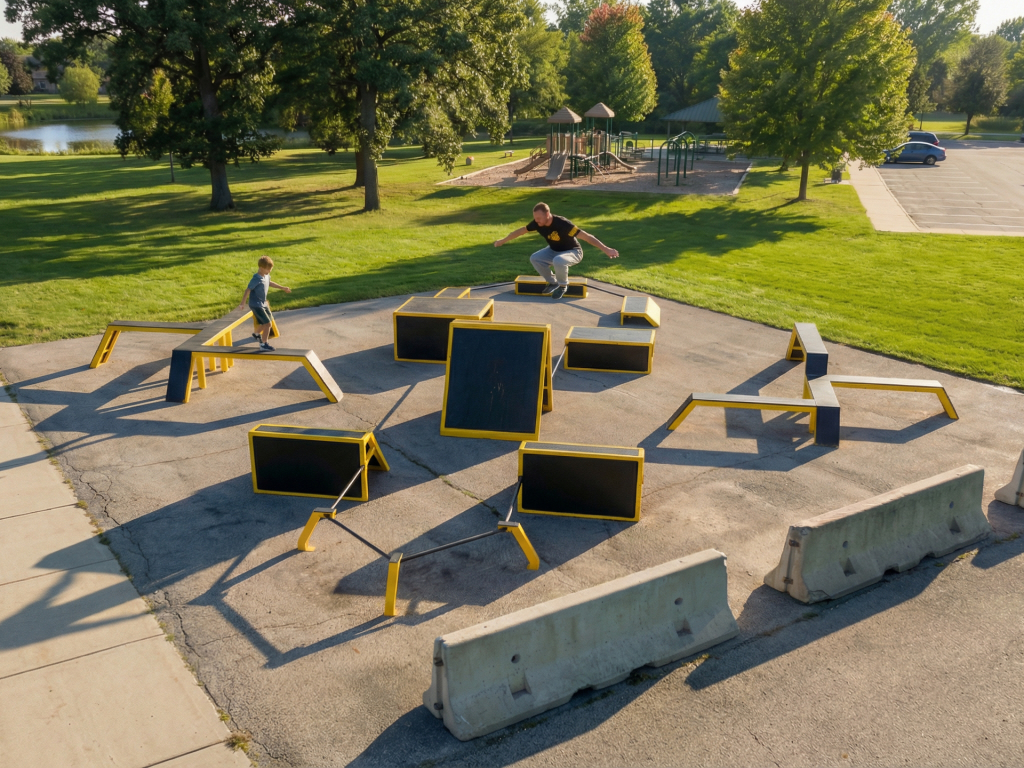

Diagonal L is a parkour flowpark from the F.LIGHT series, created for comprehensive training and local community integration. Occupying a 169 m² safety zone, this structure offers endless possibilities for overcoming obstacles and movement-based play. Even under constant heavy use by large groups, the powder-coated steel construction and 10 mm thick HPL boards will certainly rise to the challenge. It is a ready-made project for cities wanting to build a modern sports facility without compromising on quality. Most importantly, following the EN 16899 standard and a maximum equipment height of 160 cm, the entire park can be installed on raw urban surfaces—concrete, asphalt, or grass-eliminating EPDM surfacing, which is typically the biggest budget expense.
We design and create with experienced engineers and people, which are regular users. Thanks to that we have knowledge and background allowing us to preparing parks accurate for safe and functional training.
Standard:
EN 16899:2017-02
HIC max:
1 m
Maximum user weight:
120 kg
Device dimensions:
9.9 x 9.6 x 1.5 m

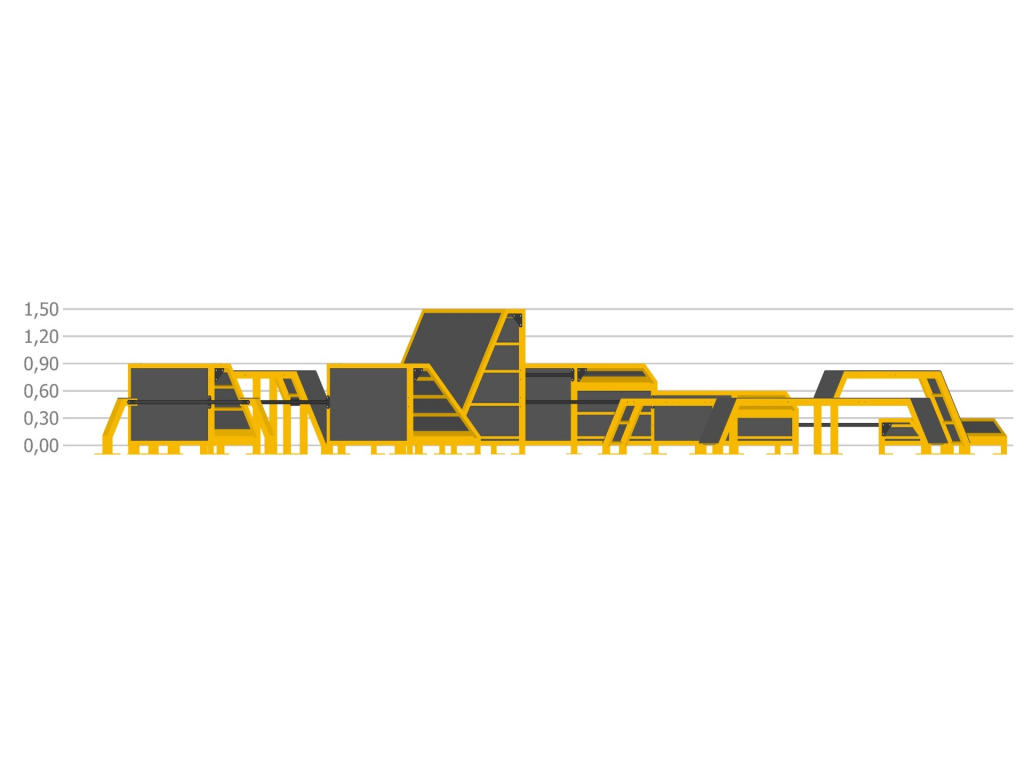

Device height:
from 0.3 to 1.5 m
Safety zone:
13 x 13 m (169 m2)
Standard: EN 16899:2017-02
Catalog card
Download PDFTop view DWG
Download DWGDuring the years of our activity we have made over 200 Flowparks. You can find our realizations in Poland and abroad.
