Larix is a professional training set designed for lovers of street workout and body weight exercises. The design promotes harmonious physical development based on elements of gymnastics, giving users a wide range of training possibilities - from pull-ups to handrail exercises to advanced movement combinations.
The device has been designed and manufactured in accordance with the PN-EN 16630:2015-06 standard, which guarantees full safety for users. All steel components are coated with a double layer of powder varnish, and the finishes are made of natural larch wood.
Safety parameters:
HIC min: 1,3 m
HIC max.: 1.6 m
Maximum number of users: 20 people
Minimum user height: 140 cm
Maximum load: 120 kg
Dimensions of the set: 8.5 × 5.4 × 3.6 m
Safety zone: 11.5 × 8.5 m (97.75 m²)
Weight of equipment: 820 kg
Color: RAL 9011 - black (poles, bars, ladders) + natural larch wood
Materials:

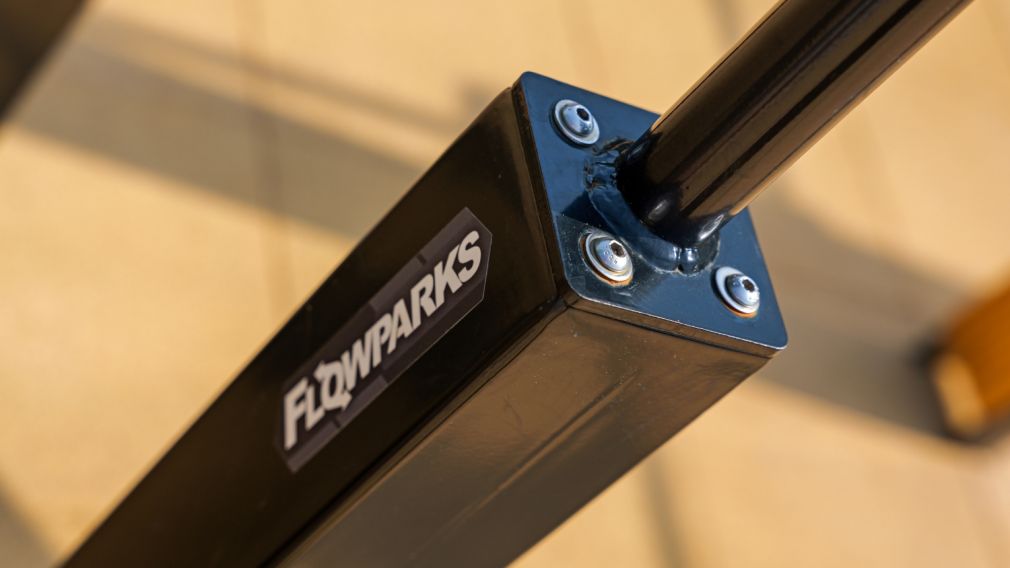

steel poles (profile 80×40×3 mm),
steel tubes with a thickness of min. 3 mm,
Ø33.7 mm rods (length 1.2-2.0 m),
Ø42.4 mm handrails (length 1.6-2.1 m),
140×25 mm larch planks.
Foundations: diameter 35 cm, height min. 70 cm, concrete class C20/25
Poles: 11 pieces.
High handrails: 3 pcs.
Medium and low handrails:
Short horizontal ladder: 1 piece.
Vertical ladder: 1 pcs.

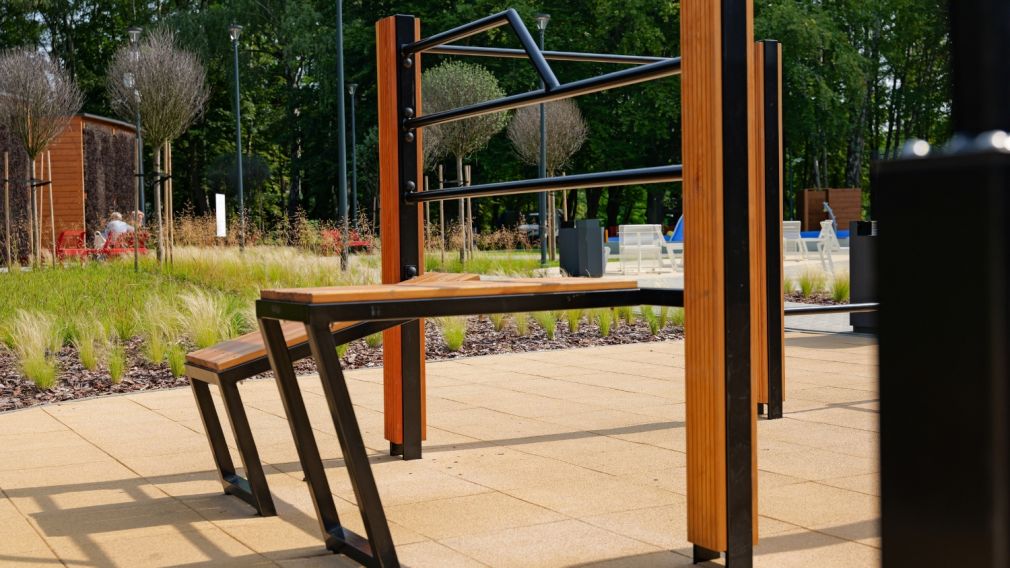

Slant bench with ladder: 1 pcs.
Straight bench with ladder: 1 pcs.
"Adder" bar: 1 pcs.
Gymnastic wheels: 1 pcs.
Safety zone
11.5x8.5m
(97 m2)
HIC max
1.6 m
Number of users
max
20 people
Maximum user weight
120 kg
,,
During the years of our activity we have made over 200 Flowparks. You can find our realizations in Poland and abroad.
